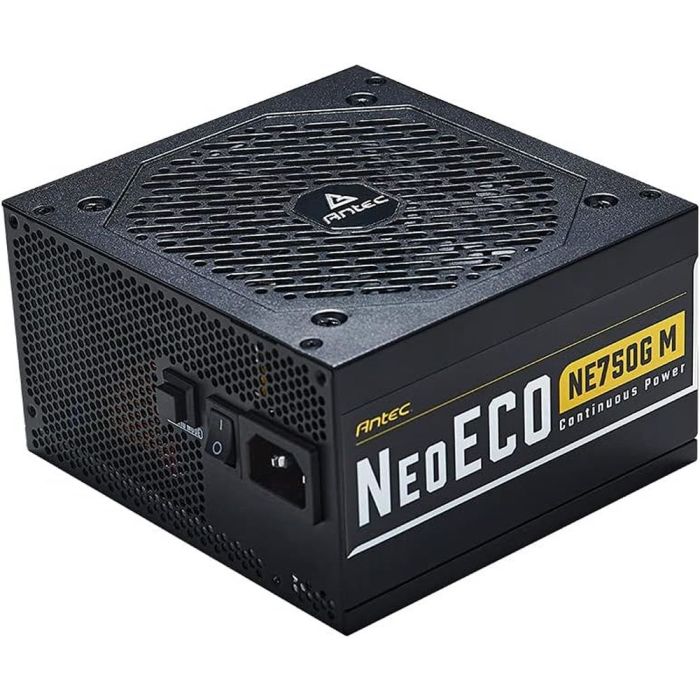

ANTEC 750W NE750G M 80+ GOLD FULL MODULAR POWER SUPPLY
120MM SILENT FAN
Features improvement for airflow and excellent durability.
ZERO RPM MODE
The Zero RPM fan mode further automatically ensures zero fan speed at low loads to reduce plenty of noise and keep absolute silence.
JAPANESE HEAVY-DUTY CAPS
Japanese capacitors ensure the tightest DC stability and regulation, for reliability that you and your system can count on.
PHASEWAVE LLC + DC TO DC DESIGN
A server-class Half-Bridge LLC design with synchronous rectification based on a DC-DC topology to improve performance and stability.
PCIE5.0 READY
12VHPWR cable included, delivering high performance & stability under high load or usage to pair with your powerful graphics cards like RTX 40 Series.
Type |
ATX 12V 2.4 |
Modular |
Fully |
Dimension |
150(L) x 140(W) x 86(H) |
Input Voltage |
100-240 VAC |
Input Current |
10A MAX |
Input Frequency Range |
50Hz-60Hz |
PFC |
Active PFC |
Power Good Signal |
100-500ms |
Efficiency |
Up To 92% |
Connector |
1 x MB 24(20+4) Pin |
2 x 8(4+4) Pin EPS 12V |
|
4 x 8(6+2) Pin PCI-E |
|
1 x 16(12+4) Pin 12VHPWR |
|
8 x SATA |
|
4 x Molex |
|
1 x FDD |
