SKU
APC-37
In stock

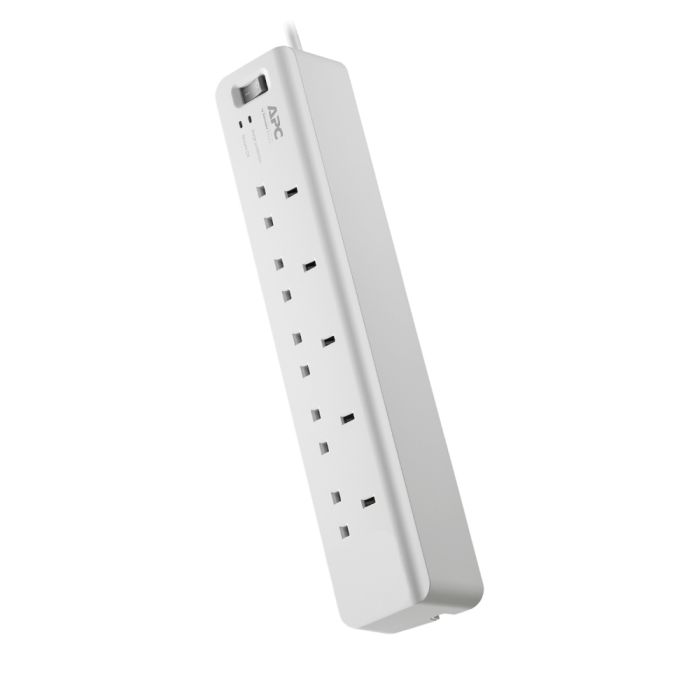

APC 5 OUTLET SURGE PROTECTOR PM5-UK
warranty (months): 24
BND 35.00
|
Technical Specifications |
|
|
Output |
Number of Outlets 5.0 Receptacle Style BS 1363 United Kingdom |
|
Input |
Input frequency 50 Hz +/- 5 Hz |
|
Surge Protection and Filtering |
Surge energy rating 918Joules ts_nm_surge_response 1ns Peak Current Common Mode 24kAmps Peak Current Normal Mode 12kAmps |
|
Physical |
Maximum Height 56MM, 5.58CM Maximum Width 385MM, 38.5CM Maximum Depth 73MM, 7.26CM Net Weight 0.67KG Shipping weight 0.79KG Shipping Height 58MM, 5.8CM Shipping Width 405MM, 40.5CM Shipping Depth 130MM, 13.0CM Color White Master Carton Dimensions (Length x Width x Height) 283 x 375 x 429MM Master Carton Units 12.0 Master Carton Weight 10.25 Units per Pallet 216.0 SCC Codes 10731304313882 |
|
Environmental |
Operating Temperature 0 - 40 °C Operating Relative Humidity 0 - 90 % Operating Elevation 0 - 3048meters Storage Temperature -5 - 40 °C Storage Relative Humidity 0 - 95 (Non-condensing) % Storage Elevation 0 - 15240meters |
|
Conformance |
Approvals CE Equipment protection policy Lifetime : 50000 euros Standard warranty Lifetime (European Union countries only) Sustainable Offer Status RoHS Compliant |
- EMI and RFI noise filtering
- Reduces line noise that can cause data loss and keyboard errors.
- IEEE let-through ratings and regulatory agency compliance
- APC surge protectors undergo stringent testing by IEEE, and are awarded "let-through ratings", which indicate the maximum voltage level that can possibly reach your equipment after a surge or voltage spike has passed through an electric surge protector. Lower IEEE let-through ratings indicate better protection and performance. The APC Essential SurgeArrest series offers optimal performance with a let-through rating of less than 330V to 500V for North American products, and a rating of less than 15% for products sold worldwide. All APC products comply with local agency safety requirements, including UL in North America and CE/Kema/Gost/C-tick/A-Tick/Telepermit in their respective regions.
- Protection working indicator
- SurgeArrest will warn you if its circuitry has been damaged by heavy strike or power line surge and it is unable to provide 100% protection. If still under warranty, APC will then replace your damaged SurgeArrest free of charge.
- Building Wiring Fault Indicator
- This LED informs users of potentially dangerous wiring problems in the wall circuit.
- Catastrophic Event Protection
- SurgeArrest components such as MOVs and Thermal fuse ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over voltage, excess power cannot reach your equipment. Unlike the APC SurgeArrest products, most surge suppressors continue to let power through even after circuits have been damaged, leaving your equipment exposed to other damaging surges.
- Fail Safe Mode
- Most other surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges. APC's SurgeArrest fail safe, which means that once the circuit of an APC SurgeArrest has been compromised the unit disconnects equipment from the power supply ensuring that no damaging surges reach your equipment.
- IEEE let-through ratings and regulatory agency compliance
- APC surge protectors undergo stringent testing by IEEE, and are awarded "let-through ratings", which indicate the maximum voltage level that can possibly reach your equipment after a surge or voltage spike has passed through an electric surge protector. Lower IEEE let-through ratings indicate better protection and performance. The APC Essential SurgeArrest series offers optimal performance with a let-through rating of less than 330V to 500V for North American products, and a rating of less than 15% for products sold worldwide. All APC products comply with local agency safety requirements, including UL in North America and CE/Kema/Gost/C-tick/A-Tick/Telepermit in their respective regions.
- Lightning and Surge Protection
- To prevent damage to your equipment from electric power surges and spikes.
- Noise Filtering
- Attenuates EMI/RFI line noise that can cause data errors and keyboard lockups, ensuring better performance of protected equipment.
- Data-line Protection
- Protection of data lines (Ethernet, Coaxial and Phone lines) ensures complete protection of your equipment from surges. It is very important to protect your equipment from “back door” electric surges traveling through data lines, as they can be as damaging to your equipment as surges traveling over power lines.
- Resettable circuit breaker
- Easy recovery from overloads; no need to replace a fuse.
