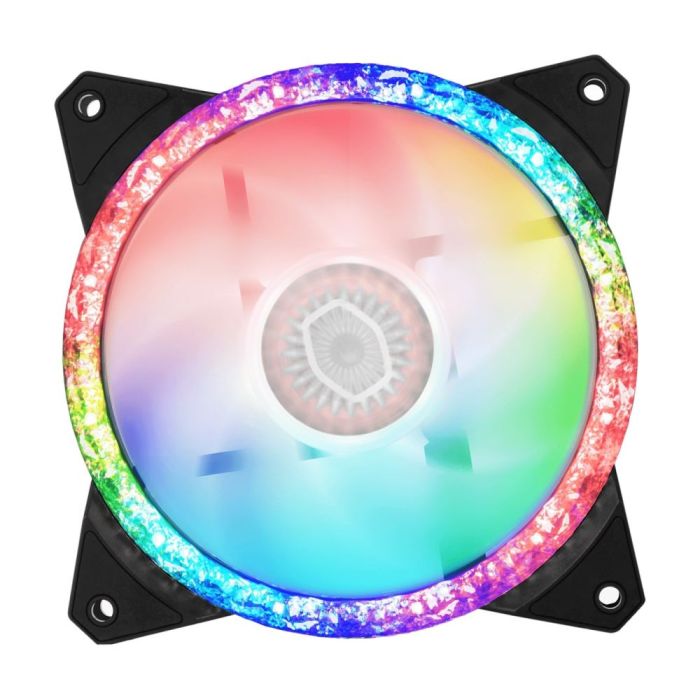

CM MF 120 PRISMATIC 3IN1 ARGB CRYSTAL FAN (2)
RADIANT CRYSTALLINE LIGHTING
Cooler Master is introducing a brand new product to the MasterFan family - MF120 Prismatic. It features a tri-loop Addressable RGB lighting with distinctive crystallization on both sides. The Silent Driver IC also offers a smooth and quiet fan operation using 7-blade fan to deliver strong air pressure at maximum air flow.
The Addressable RGB lighting is even more vibrant with certified compatibility across all major motherboard manufacturers. The two-tier sealing design improves dustproof capabilities and prevent lubricant oil leakage for extended life span and performance.
TRI-LOOP ADDRESSABLE GEN 2 RGB
24 Addressable Gen 2 RGB LEDs are uniformly arranged around the crystalized loop design with an additional 6 Addressable LEDs on the fan hub.
RADIANT CRYSTALLINE LIGHTING EFFECT
Unique crystallized loop design on both sides of the fan provide maximum light dispersion of the addressable RGB.
SILENT DRIVER IC AND COOLING TECHNOLOGY
Silent Driver IC with noise reduction technology offers smooth rotation reduced vibration and fan noise delivering quiet performance even at the highest loads.
HIGHLY OPTIMIZED P/Q PERFORMANCE FOR ALL APPLICATIONS
The MF120 Prismatic features redesigned fan blades producing a pressure to airflow (P/Q) curve that exceeds previous generation performance.
ADDRESSABLE GEN 2 RGB CONTROLLER
Included Addressable Gen 2 RGB Controller works with Cooler Master's MasterPlus+ software customizing each individual LED on color, effect, brightness and more - all from an intuitive, convenient interface.
Fan Profiles |
Addressable Gen 2 RGB |
Fan Bearing Type |
Rifle Bearing |
Fan Speed |
650-2000 RPM ± 5% |
Fan Airflow |
55 CFM (Max) |
Fan Air Pressure |
2.91 mmH2O (Max) |
Fan Noise Level |
8 - 27 dBA |
Fan Dimensions (L x W x H) |
120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch |
Fan MTTF |
160,000 Hours |
RGB Connector |
3-Pin ARGB |
RGB Rated Voltage |
5 VDC |
RGB Rated Current |
0.65A |
Fan Rated Voltage |
12 VDC |
Fan Rated Current |
0.12A |
Fan Safety Current |
0.37A |
Fan Power Consumption |
1.44W |
Fan Power Connector |
4-Pin (PWM) |
Fan Weight |
153g / 0.34 lbs |
Warranty |
2 years |
Cooler Type |
Case Fan |
Series |
MasterFan |
Fan Size |
120 |
Fan - LED Lighting |
ARGB |
Note |
Products manufactured after 1st June 2021 are Addressable Gen 2 RGB LEDs |
