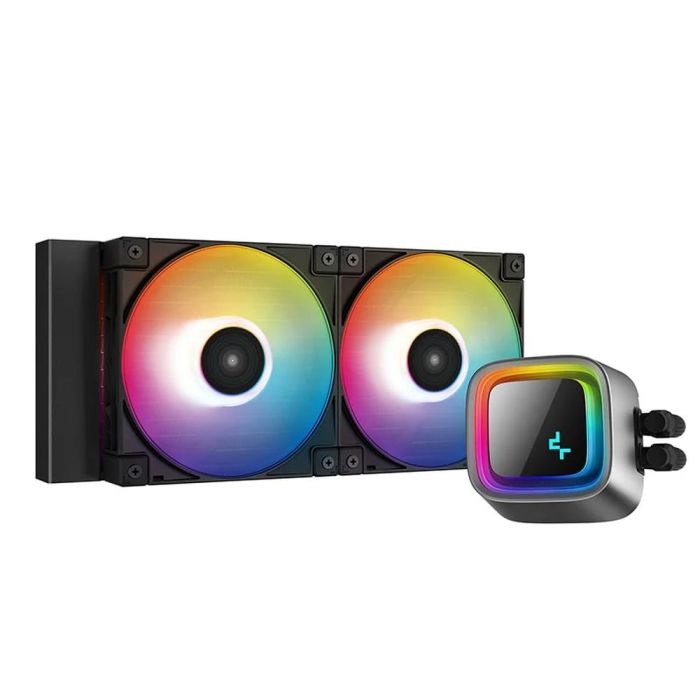

DEEPCOOL LS520 240MM AIO COOLER
A NEW ERA OF DEEPCOOL
Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:
- Improved microchannel design ensures optimal coolant flow.
- Powerful three-phase drive motor up to 3100 RPM.
- Thick solid copper base with a seamless match.
COOL AND QUIET
Get treated to excellent cooling and superb silent efficiency with the included FC120 fans boasting enhanced static pressure, concentrated airflow, and a fluid dynamic bearings.
- 500~2250 RPM * - Dynamic PWM Range
- 85 CFM - Supreme Airflow
- ≤32.9 dB(A) - Full Load Noise
- 50,000 Hours -Long Operational Lifespan
SIMPLE AND SECURE
- Installation is quick and easy with newly designed mounting brackets that keep your cooler fastened safely on both Intel and AMD platforms
CUSTOMIZE YOUR LOOK
- The new infinity mirror pump face design projects two light loops for a mesmerizing visual effect while also allowing installation in any orientation with a independently rotatable logo plate. For full customization, an additional blank plate is provided for your own design.
Net Weight |
1305 g |
Radiator Dimensions |
282×120×27 mm |
Radiator Material |
Aluminum |
Tube length |
410 mm |
Pump Dimensions |
86×74×57 mm |
Pump Speed |
3100 RPM±10% |
Pump Noise |
19 dB(A) |
Pump Connector |
3-pin |
Pump Rated Voltage |
12 VDC |
Pump Rated Current |
0.47 A |
Pump Power Consumption |
5.64 W |
Fan Dimensions |
120×120×25 mm |
Fan Speed |
500~2250 RPM±10% |
Fan Airflow |
85.85 CFM |
Fan Air Pressure |
3.27 mmAq |
Fan Noise |
≤32.9 dB(A) |
Fan Connector |
4-pin PWM |
Bearing Type |
Fluid Dynamic Bearing |
Fan Rated Voltage |
12 VDC |
Fan Rated Current |
0.29 A |
Fan Power Consumption |
3.48 W |
LED Type |
Addressable RGB LED |
LED Connector |
3-pin(+5V-D-G) |
LED Rated Voltage |
5 VDC |
LED Power Consumption |
2.2 W(PUMP)/ 3.6 W(FAN×2) |
EAN |
6933412727484 |
P/N |
R-LS520-BKAMNT-G-1 |
