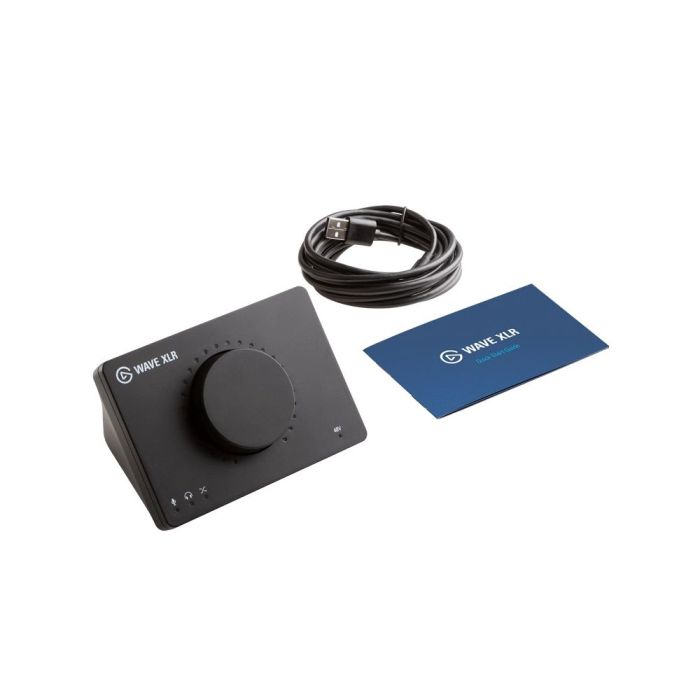

ELGATO WAVE XLR - MICROPHONE INTERFACE & DIGITAL MIXING SOLUTION
BRING YOUR MIC
You love your XLR microphone. You’ll love it even more with Wave XLR, a compact USB interface that gives your mic superpowers.
PLENTY OF POWER
Give your mic the boost it needs without an external preamp. Up to 75 dB of ultra-low-noise gain makes notoriously insensitive dynamic mics sound loud and clear, while 48 volts of phantom power bring condenser mics to life.
MULTI-CHANNEL COMMAND
Game audio, voice chat, music, alerts, samples, multiple mics* and more. Independent input channels let you blend audio sources in real time.
*Multiple Wave mics are not supported at this time
YOUR WORKFLOW. EVOLVED.
Stream Deck works seamlessly with Wave Link to give you complete studio control. Easily set keys to mute sources, adjust levels and skip tracks — anything. Or create Multi Actions to adjust audio, lighting and camera settings simultaneously — all with a single tap. It’s advanced A/V automation at your fingertips. Tactile and fully customizable. A hybrid mixing solution like no other.
FREQUENCY RESPONSE |
20 Hz - 20 kHz |
DYNAMIC RANGE |
100 dB (120 dB Clipguard engaged) |
EQUIVALENT INPUT NOISE (EIN) |
-130 dBV @ 60 dB gain |
GAIN RANGE |
0 - 75 dB |
PHANTOM POWER |
48 VDC, 7mA |
MAXIMUM INPUT LEVEL |
10 V @ 0 dB gain (Clipguard engaged) |
MAXIMUM OUTPUT LEVEL |
77 mW |
RESOLUTION |
24-bit |
SAMPLE RATE |
48 / 96 kHz |
INTERFACE |
USB-C |
