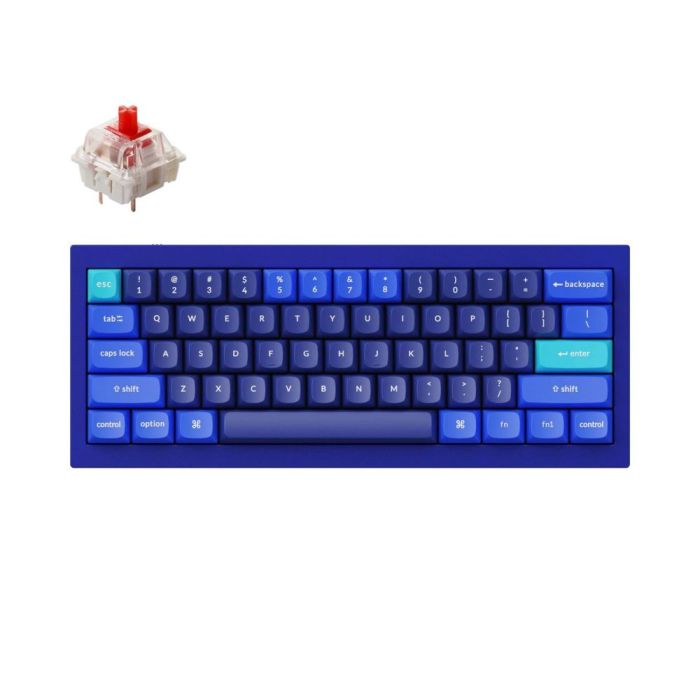

KEYCHRON Q4 FULLY ASSEMBLED NAVY BLUE GATERON G PRO
A Refined Piece Of Metal Art
The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q4.
Double Gasket Design
The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
An Epic Core Inside The Keyboard
A brand new ultra-low-power MCU Arm structure that is powerful and armed with 128K Flash to provide more flexibility for developers. The polling rate is up to 1000 Hz out of the box, which makes latency non-existent for the competitive game.
OSA Profile Double-shot PBT Keycaps
For the new double-shot PBT keycaps, we built a new profile. It has a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.
"
Width |
121 mm |
Length |
303 mm |
Front Height |
19.7 mm (without keycaps) |
Back Height |
33.8 mm (without keycaps) |
Feet Height |
2.7 mm |
Angle |
6.5° |
Weight |
1500 g ± 10g (Fully Assembled Version) |
Body Material |
Full CNC machined aluminum |
Plate Material |
Steel |
Polling Rate |
1000 Hz |
Keycaps (Fully Assembled Version) |
Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape) |
MCU |
Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash) |
Switches |
Gateron G Pro (Fully Assembled Version) |
Backlight |
South-facing RGB LED |
Switch Support |
Hot-swappable (5 pin & 3 pin) |
Stabs |
Screw-in PCB stabs |
Connectivity |
Type-C |
Cable |
Type-C cable + Type-A to Type-C adapter |
