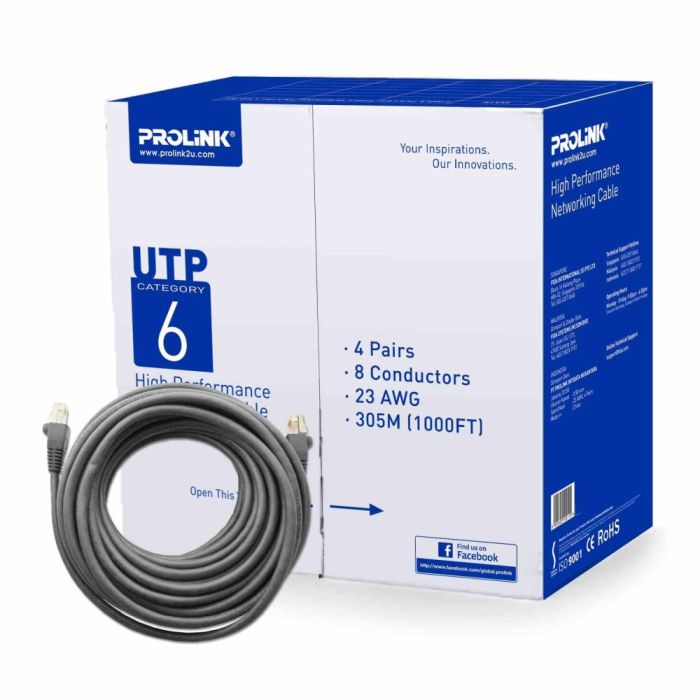

PROLINK CAT6 RJ45 NETWORK CABLE (305 METER)
- 4-pair unshielded twisted pair (UTP) cable
- Thicker conductor diameter for higher reliability and higher data rates
- Packaged in an easy to pull box for convenience installation
- Higher signal to noise ratio
Operating Temperature
|
75°C
|
Packing
|
Easy-pull boxes/Cable length of 305M
|
CONSTRUCTION
|
|
Conductor
|
23 AWG (4 pair)
|
Conductor Diameter
|
0.56±0.02mm
|
Insulation
|
High Density Polyethylene
|
Insulation Diameter
|
0.93±0.02mm
|
Pairs
|
2 Insulated conductors twisted together
|
Cable Diameter
|
5.6±0.15mm
|
Printing
|
Each meter printed with sequential length counter
|
Jacket Nominal Wall Thickness
|
0.7±0.01mm
|
Insulation Nominal Wall Thickness
|
0.2mm
|
ELECTRICAL PROPERTIES
|
|
Characteristic Impedance
|
64kHz: 125?±20%
1~250MHz: 100?±15%
|
Conductor Resistance
|
MAX 18?/100m at 20°C
|
Insulation Resistance
|
MIN 150M?/KM
|
Mutual Capacitance
|
MAX 5600pf/100M
|
Resistance Unbalance
|
MAX 5%
|
Resistance Unbalance
|
MAX 300pf/100M
|
COLOUR CODE
|
|
Pair No:
A
B
C
D
|
Colour:
White-Blue Stripe and Blue
White-Orange Stripe and Orange
White-Green Stripe and Green
White-Brown Stripe and Brown
|
DIMENSION & WEIGHT
|
|
Dimension
|
390 x 390 x 235mm (L x W x H)
|
Weight
|
9.67kg/roll (Cable Only)
10.53kg (With Box)
|
PACKAGE CONTENT
|
CAT6 UTP Cable
|
|
|
