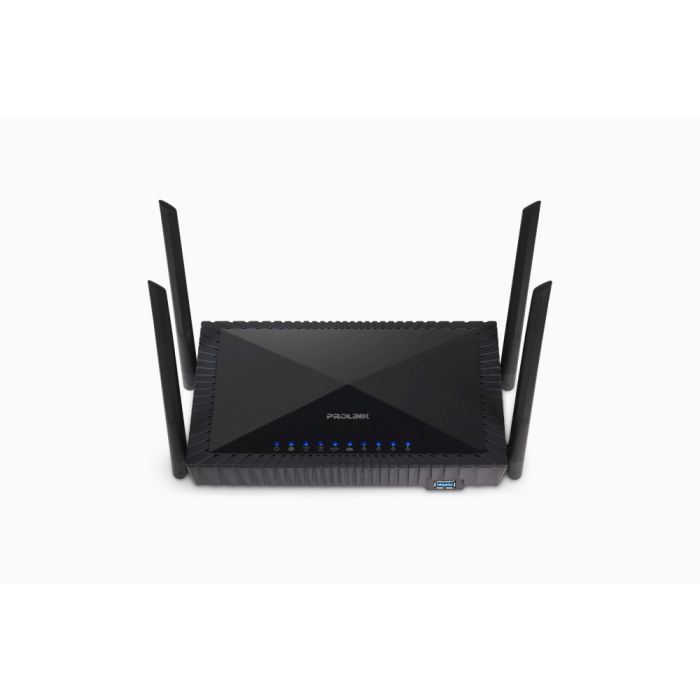

PROLINK PRC2401U AC2600 WIRELESS DUAL BAND GIGABIT ROUTER

WiFi Standard

IEEE 802.11b/g/n IEEE 802.11 ac/n/a

Frequency

2.4GHz; 5GHz

Data Rate

2.4GHz: Up to 800Mbps 5GHz: Up to 1733Mbps

Channels / Frequency

2.4GHz: 1 ~ 11 (2412 - 2462 MHz) 5GHz: 36, 40, 44, 48, 149, 153, 157, 161, 165 (5180 - 5240 and 5745 - 5825 MHz)

Channel Bandwidth

2.4GHz: 20/40MHz 5GHz: 20/40/80MHz

Coverage

Up to 4000 sq. ft. (indoor)

Output Power

2.4GHz: up to 20dBm 5GHz: up to 23dBm

Antenna

4 Fixed External Antenna High Gain

Transmit/Receive

2.4GHz: 4T4R; 5GHz: 4T4R

External Interface

Reset Button WPS Button Wi-Fi ON/OFF Button Power ON/OFF Button

Power Adapter

12VDC/2A

External Interface

WAN x1: Gigabit Ethernet Port (RJ45) LAN x4: Gigabit Ethernet Port (RJ45) USB3.0 x 1

SOFTWARE FEATURES

Internet Connection Type

Dynamic IP Static IP PPPoE

Device Operation Mode

Router Mode Repeater Mode AP Mode

VLAN

Supported

Bandwidth Prioritisation

Supported

DLNA

Supported

Access Control

Parental Control Access Schedule

Port Forwarding

Port Forwarding Virtual Server UPnP DMZ

Quality of Service

Bandwidth Control

Wi-Fi Technology

MU-MIMO Band Steering Beamforming

Wi-Fi Guest Network

Supported

Wi-Fi Tool

Dr. Wi-Fi Wireless Channel Scan

DHCP

DHCP Server DHCP Client

USB Sharing

Samba Storage Windows File Sharing FTP File Sharing

Management

Remote Management Over-The-Air Firmware Upgrade Local Firmware Upgrade

Firewall Security

DOS SPI Firewall, IP Address Filter MAC Address Filter URL Filter Port Filter Quick VPN Web Filtering

SYSTEM REQUIREMENTS

OS Supported

Windows XP/Vista/7/8/10 Mac OS X 10.6.x or later Android 5.0 & above, iOS 9.0 & above

PACKAGE CONTENT

1 x Wireless AC2600 MU-MIMO Dual-Band Gigabit Router
