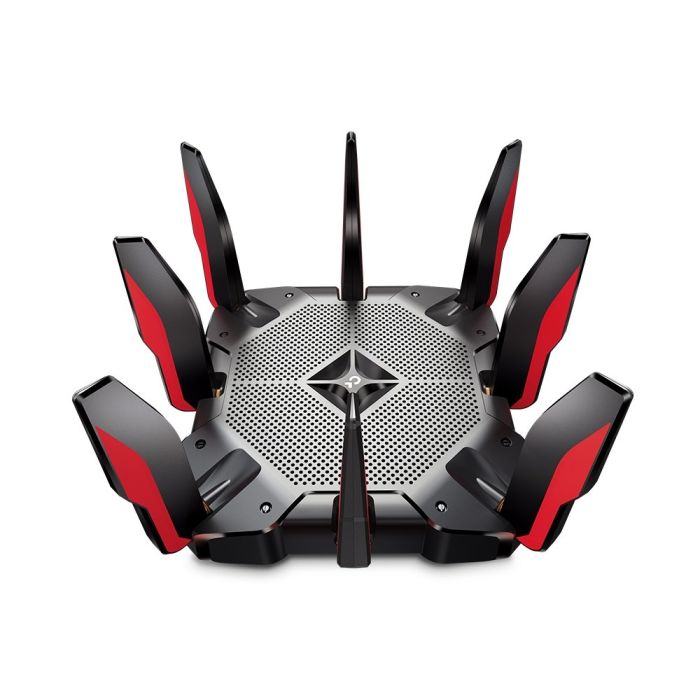

TPLINK ARCHER AX11000 TRI-BAND WIFI 6 GAMING ROUTER

Standards

Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

AX11000
5 GHz: 4804 Mbps (802.11ax, HT160)
5 GHz: 4804 Mbps (802.11ax, HT160)
2.4 GHz: 1148 Mbps (802.11ax)

WiFi Range

8× Detachable High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas (4 Bedroom Houses)

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM

Improves transmission power to strengthen signal coverage

WiFi Capacity

Tri-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

12 Streams
Connect your devices to more bandwidth

Working Modes

Router Mode
Access Point Mode

Processor

1.8 GHz 64 Bit Quad-Core CPU

Ethernet Ports

1× 2.5 Gbps WAN Port
8× Gigabit LAN Ports

Static Link Aggregation (LAG) available with 2× LAN ports

USB Support

1× USB-C 3.0 Port
1× USB-A 3.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server

Buttons

Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button

Power

12 V ? 5 A

WiFi Encryption

WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)

Network Security

SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway

HomeCare™ Antivirus

Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log

Guest Network

1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

VPN Server

OpenVPN
PPTP

Protocols

IPv4
IPv6

Game Center

Game Accelerator
Detects and optimizes gaming streams to keep latency as low as possible

Game Statistics
Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail

Game Protector
Keep your accounts and system safe with HomeCare™ antivirus protection

Service Kits

HomeCare™

HomeCare™ Parental Controls

Custom Profiles
Content Filtering
App Block
URL Filtering
Time Limit
Time Schedule (Bedtime)
Log Insight

WAN Types

Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service

Game Accelerator QoS
QoS by Device

QoS by Application (HomeCare™ QoS)

Cloud Service

Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding

Port Forwarding
Port Triggering
DMZ
UPnP

IPTV

IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP

Address Reservation
DHCP Client List
Server

DDNS

TP-Link
NO-IP
DynDNS

Management

Tether App
Webpage

Dimensions (W×D×H)

11.3 × 11.3 × 7.2 in
(288 × 288 × 184 mm)

Package Contents

Wi-Fi Router Archer AX11000
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

System Requirements

Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications

FCC, RoHS

Environment

Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
