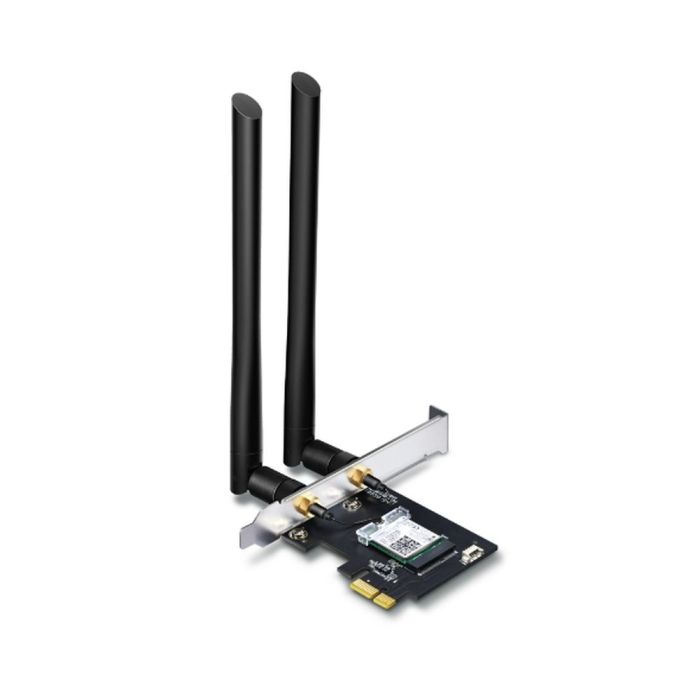

TPLINK ARCHER T5E AC1200 DUAL BAND WI-FI BLUETOOTH PCI EXPRESS ADAPTER

Interface

PCI Express

Dimensions

4.8 × 3.3 × 0.85 in (120.8 × 83.2 × 21.5 mm)

Antenna

2 Detachable External Antennas

Standards and Protocols

Bluetooth 4.2, Bluetooth 4.0

Interface

USB 2.0

Wireless Standards

IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz

Signal Rate

11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

Reception Sensitivity

5 GHz:
11ac HT80: -59.0dBm
11n HT40: -68.5dBm
11a 54Mbps: -73.5dBm
11a 6Mbps: -91dBm
2.4 GHz:
11n HT40: -69.5dBm
11g 54Mbps: -74dBm
11b 11Mbps: -87dBm

Transmit Power

5 GHz: 21.5dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 20.5dBm(FCC) / 20dBm(CE) (EIRP)

Wireless Modes

Infrastructure mode

Wireless Security

WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

System Requirements

Windows 10/8.1/8/7 (32/64 bit)

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
