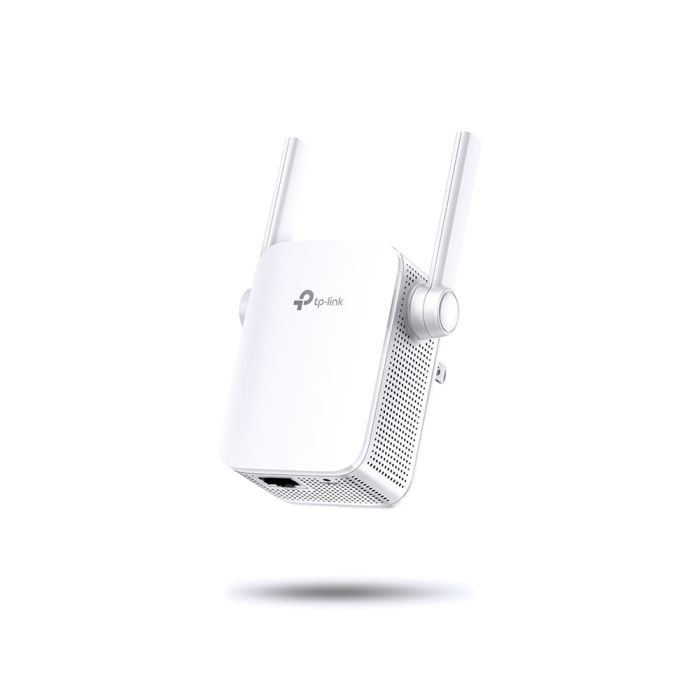

TPLINK RE305 AC1200 WIFI RANGE EXTENDER

Plug Type

EU, UK, US

Standards and Protocols

IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11a, IEEE 802.11b

Interface

1 x 10/100M Ethernet Port (RJ45)

Button

WPS Button, Reset Button

Power Consumption

7.3W?max power consumption?

Dimensions ( W x D x H )

3.1 x 3.0 x 3.0 in. (80 x 78 x 77mm)

Antenna

2 x external

Frequency

2.4GHz & 5GHz(11ac)

Signal Rate

5GHz:Up to 867Mbps
2.4GHz:Up to 300Mpbs

Reception Sensitivity

5GHz?
11a 6Mbps:-91dBm@10% PER
11a 54Mbps: -74dBm@10% PER
11ac HT20 mcs8: -68dBm@10% PER
11ac HT40 mcs9: -63dBm@10% PER
11ac HT80 mcs9: -59dBm@10% PER
2.4GHz
11g 54M: -79dBm@10% PER
11n HT20 mcs7: -77dBm@10% PER
11n HT40 mcs7: -74dBm@10% PER

Wireless Modes

Range Extender/Access Point
Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band

Wireless Functions

Wireless Statistic
Concurrent Mode boost both 2.4G/5G Wi-Fi band
Access Control
LED Control
Domain Login Function

Wireless Security

64/128-bit WEP
WPA-PSK / WPA2-PSK

Transmission Power

<17dBm(2.4GHz)
<17dBm(5GHz)

Certification

CE, FCC, RoHS

Package Contents

AC1200 Wi-Fi Range Extender RE305
Quick Installation Guide

Box Dimensions (W X D X H)

6.15 x 4 x 3.7 in. (156.5 x 101.5 x 95mm)

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
