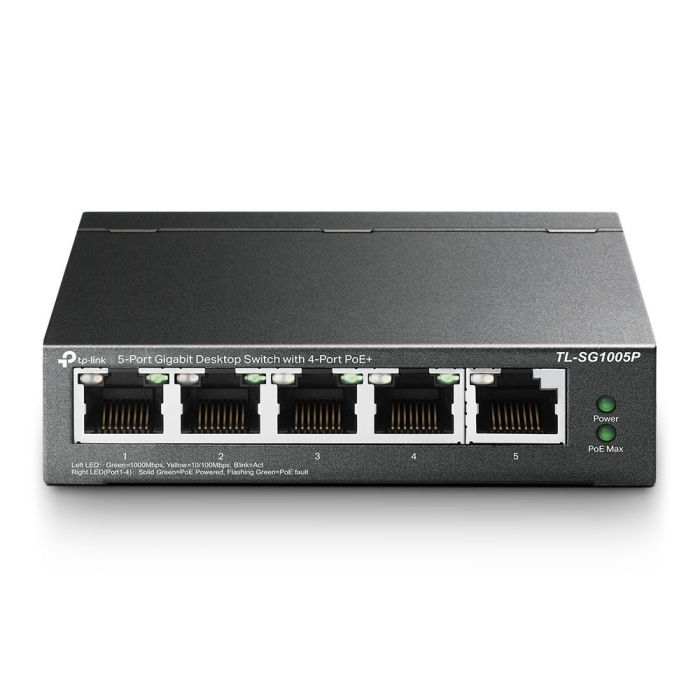

TPLINK TL-SG1005P 5-PORT GIGABIT SWITCH WITH 4-PORT POE

Hardware Features

Interface

5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity

Fanless

External Power Supply

External Power Adapter(Output: 48VDC / 1.25A)

PoE Ports (RJ45)

Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 56W

Backbound Bandwidth

10Gbps

Mac Address Table

2K

Dimensions ( W x D x H )

3.9 × 3.9 × 1.0 in.
(100 × 98 × 25 mm)

Max Power Consumption

4.0W(no PD load)
64.4W(with 56W PD load)

Max Heat Dissipation

13.5BTU/h(no PD load)
219.9BTU/h(with 56W PD load)

Software Features

Advanced Features

Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping

Transfer Method

Store-And-Forward

Others

Certification

FCC, RoHS

Package Contents

TL-SG1005P, Power Adapter, Installation Guide

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~90%RH non-condensing
