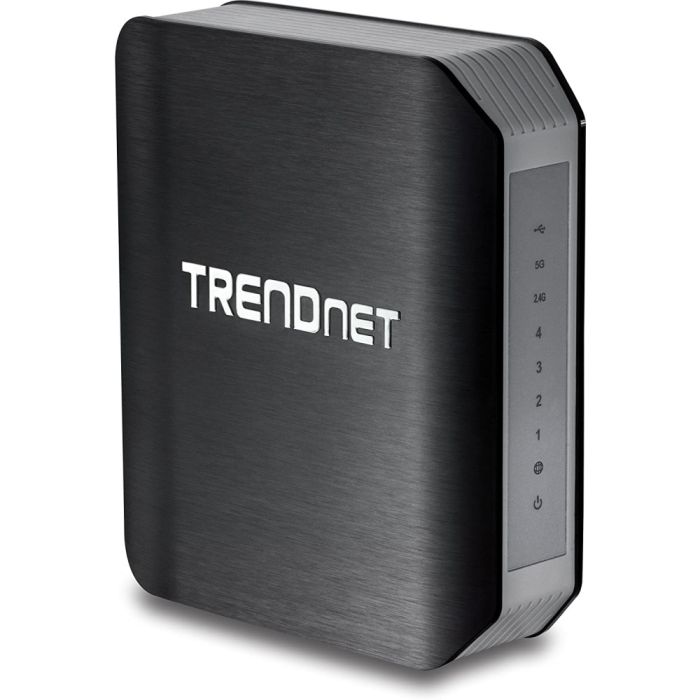

TRENDNET TEW-812DRU AC1750 DUAL BAND WIRELESS ROUTER

HARDWARE

Standards

·         Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3ab (1000Base-T)

·         Wireless: IEEE 802.11ac (draft), IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, 802.11a

Internet Protocol

·         IPv4 and IPv6

LAN

·         4 x 10/100/1000 Mbps Auto-MDIX

WAN

·         1 x 10/100/1000 Mbps Auto-MDIX

USB

·         1 x USB 2.0 Type-A (Storage / Printing)

WPS Button

·         Wi-Fi Protected Setup (WPS) connects with other WPS compliant devices

Reset Button

·         Reset unit back to factory default (press and hold for 10 seconds)

Network Protocols / Features

·         IGMP v1/2/3 proxy and snooping , Static and dynamic routing, UPnP, DHCP, server, Dynamic DNS (No-IP.com and DynDNS.com), NTP, IPsec / PPTP / L2TP VPN pass through, IPv6

Quality of Service

·         WMM and WAN (Configurable Upload / Download)

Control Center Utility OS Support

·         Windows® 8.1, 8, 7, Vista, XP

·         Mac OS® 10.4-10.9

Internet Connection Type

·         IPv6, Dynamic IP, Static (fixed) IP, PPPoE, PPTP, L2TP

Firewall

·         NAT, SPI, DMZ host, virtual servers, MAC / IP filters and URL filter

Management / Monitoring

·         Local / remote configuration, upgrade firmware, backup / restore configuration via web browser, internal system log, ping test tool

Supported Web Browser

·         Internet Explorer 6.0 or above, Firefox 2.0 or above, Chrome, Opera, Safari

LED Indicator

·         Power, LAN 1-4, WAN, 2.4 GHz Wireless, 5 GHz Wireless, WPS

Power Adapter

·         Input: 100 ~ 240 V, 50~60 Hz, 0.8 A

·         Output: 12 V DC, 2 A external power adapter

Power Consumption

·         18 watts (max.)

Dimension (L x W x H)

·         48 x 155 x 180 mm (1.9 x 6.1 x 7.1 in)

Weight

·         395 g (14 oz)

Temperature

·         Operation: 0°~ 40°C (32°F~ 104°F)

·         Storage: -20°~ 60°C (-4°F~140°F)

Humidity

·         Max 90% (non-condensing)

Certifications

·         CE, FCC

WIRELESS

Frequency

·         2.4 GHz: 2.412~2.462 (FCC) and 2.412~2.472 (ETSI)

·         5 GHz: 5.15 ~ 5.250 / 5.725~5.850 GHz (FCC) 5.15 ~ 5.250 (ETSI)

Antenna

·         2.4 GHz: 3 x 2 dBi PIFA internal

·         5 GHz: 3 x 2 dBi PIFA internal

Modulation

·         CCK, DQPSK, DBPSK, OFDM, BPSK, QPSK, 16/64/256-QAM

Data Rate

·         802.11a: up to 54 Mbps

·         802.11b: up to 11 Mbps

·         802.11g: up to 54 Mbps

·         802.11n: up to 450 Mbps (for both 2.4 & 5 GHz)

·         802.11ac: up to 1.3 Gbps

Security

·         64/128-bit WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS

Guest network

·         Up to 3 per wireless band

Access Control

·         MAC Address Filter (Up to 24 entries)

Output Power

·         802.11a: FCC 22 dBm (typical), CE 18 dBm (typical)

·         802.11b: 19 dBm (typical) (for 2.4 & 5 GHz)

·         802.11g: 18 dBm (typical) (for 2.4 & 5 GHz)

·         802.11n: 18 dBm (typical) (for 2.4 & 5 GHz)

·         802.11ac: FCC 23 dBm (typical), CE 19 dBm (typical)

Receiving Sensitivity

·         802.11a: -68 dBm (typical) @ 54 Mbps

·         802.11b: -84 dBm (typical) @ 11 Mbps

·         802.11g: -72 dBm (typical) @ 54 Mbps

·         802.11n: 18 dBm (typical) @ 300 Mbps

·         802.11an:-68 dBm (typical) @ 450 Mbps (for 2.4 & 5 GHz)

·         802.11ac: -55 dBm (typical) @ 1.3 Gbps

Channels

·         2.4 GHz: 1~11 (FCC), 1~13 (ETSI)

·         5 GHz: 36, 40, 44, 48, 149, 153, 157, 161 and 165 (FCC), 36, 40, 44, 48 (ETSI)

Package Contents

TEW-812DRU

Multi-Language Quick Installation Guide

CD-ROM (Utility and User's Guide)

1 x Network cable (1.5 m / 5 ft)

Power adapter (12 V, 2A)
